Hybrid 160lm/W All In One 40W Solar LED Street Light Motion Senser
AC DC Hybrid 160lm/w All in one Solar LED Streetlight 40W Motion
senser
1. Outlook
2. Specifications
Par NO Parameter | LY-ST30040PW | LY- ST30040NW | LY- ST30040WW |
| Battery | 18650 lithium battery 12V 40 Ah |
| Beam angle | 150x70° | 150x70° | 150x70° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 40W | 40W | 40W |
| Luminous flux(lm) | 6400 | 6350 | 6300 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Solar panel | 50W /18V Monocrystalline Silicon |
| CRI | ＞70 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure
white:5000-6500K |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control + Motion Sensor |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 4~8M |
| Size(mm) | 945x298x127 | 945x298x127 | 945x298x127 |
| Net Weigh(kg) | 11 | 11 | 11 |
| Package Size(mm) | 1000*340*180 | 1000*340*180 | 1000*340*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 12.1 | 12.1 | 12.2 |
3. Applications
Suitable for the street lighting; sidewalk lighting;roadway
lighting;
fence lighting; pathway lighting; campus lighting; park lighting;
garden lighting; ramp lighting;
boat dock lighting; remote area lighting; farm & ranch lighting.
4. Features
1>The intergration of design ,no cable,the installation is very
convenient.
2>The Mono-crystalline solar panel,LED lights,lithium
battery,intelligent controller integrated Aluminum Alloy shell.
3>It used of lithium iron phosphate battery,fight the high
temperature,keep long life.
4>When the products with optically controlled microwave
induction infrared sensor, automatic adjustment of intelligent
power on rainy days, extend rainy days.
5>It used of alloy material as the main structure,with good rust
prevention,corrosion protection.
6>The wireless remote control setting device,adjustable lighting
time ,lighting power ,automatic detection of battery voltage,read
light power parameters,a human body induction function,as long as
people go through when full power lighting,no automatic power down
alf, restore energy saving mode.
7>time control + light sensor control+ motion sensor control
8>Motion and light sensor built in:solar street light goes on at
dusk at 50% brightness. Can go from 50% power to full brightness
when motion is detected. Three Intelligent Modes: Bright / DIM /
Recharge. 1,Bright: motion activates for lighting when motion is
detected for security light and to save battery; 2,DIM: 50%
lighting for saving power when no motion; 3,Off/Recharge:
automatically turns off in daylight and goes into recharge mode.
(working mode can be adjusted according to client's demands).

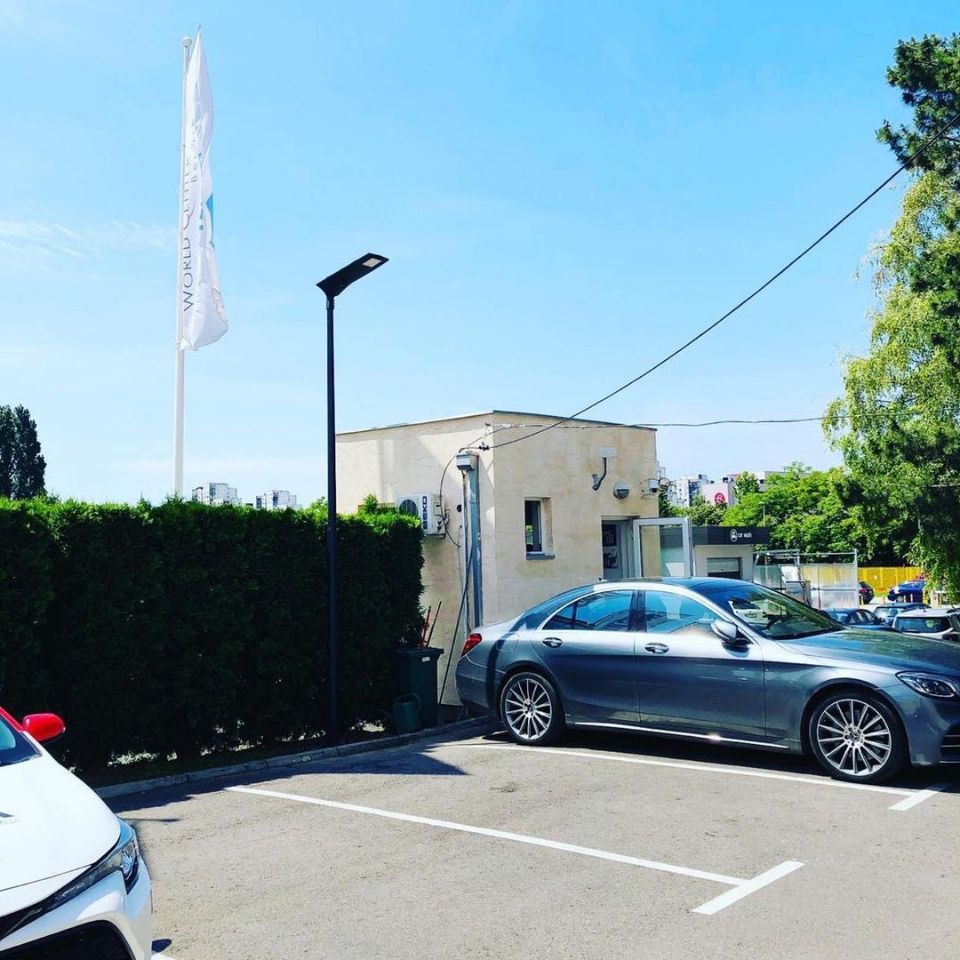

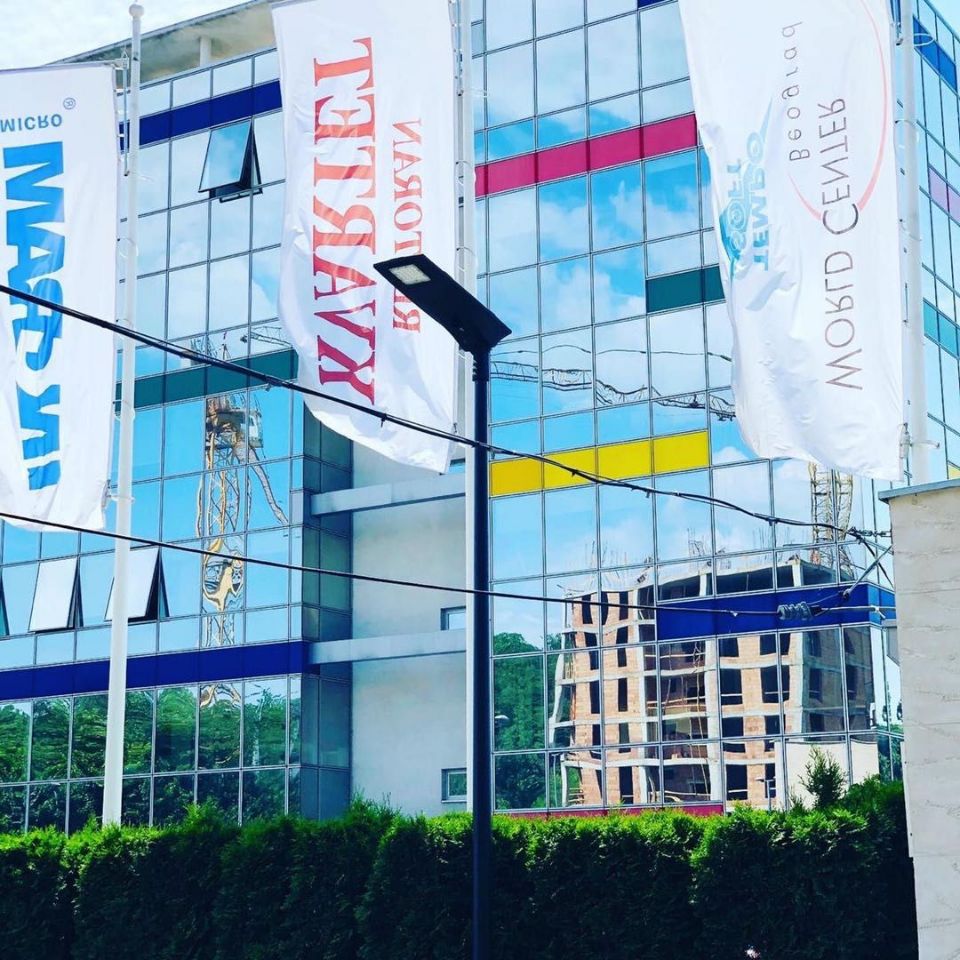

5. Pictures
6. Smart Mold
7. Connection Diagram
Features a DC detection function. If DC available, the system will
automatically switch to
lithium battery supply when the battery voltage rise to the DC
switching point; the system will
automatically switch to DC power supply when the battery voltage
falls to the DC switching
point; if DC powers off, the system will shut off output when the
battery reaches the
over-discharge point after continuous discharging.
8. Operation and Storage Condition
- Operation Ambient Temperature -15 to +50°C, Relative Humidity
20~90%
- Storage Ambient Temperature -15 to +60°C, Relative Humidity 5~95%
- Mounting Height : Suitable for 4~8m height
9. Package
Inner box Size: 1000mm×340mm×185mm
Outer box Size: 1020mm×355mm×405mm (2 PCS LED Street Light)
10. FAQ
1. How does the light work ?
During the daytime, the solar panel will gain the power from the
sun and charge the battery, when night comes, the light will
automaticlly turn on, the battery inside will provide the energy to
the light.
2. How many hours can the light work ?
Normally, after fully charged, the light can work ≥ 15h ( 100%
power with Microwave Sensor ). It is 100% power working when human
being detected, and 30% power default setting when no human being
detected.
3. How many rainy days can the light work ?
The light can work for 3 ~ 5 rainy days.
4. Is the battery replaceable ?
Yes. The battery inside is easy to replace. If the battery broken
during the warranty period, we will offer you free replacement.
5. Can we buy samples ?
Yes. we welcome sample order to test and check quality. We will
recommend you the suitable models according to your areas.
6. Do you have any MOQ limit for solar lighting product order ?
No, even only buy 1 pcs as a sample for test is also available.
7. What about the lead time ?
Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for
order quantity.
8. Is it OK to print our company logo on package ?
Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
9. What's your warranty ?
We provide 5 years warranty for the whole product, replace any
damaged parts or whole product free of charge during the warranty
period. but the product damage caused by force majeure is excepted.
11. Warning
- Do Not Open the Light Engine
- Do Not Soak the LED Street Light into Water
- When open the package please assure that the light is perfect
without any damage. If any damage is found, do not install the
product.
