MPPT Controller Off Grid Solar Led Street Light With Lithium Battery
MPPT Controller High Power Solar off grid LED Street Light with Light and Time Control
High Power Solar off grid LED Street Light with MPPT Controller
1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;
3. The solar panel is made of monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity is high;
8.365 days uninterrupted power.
Par NO. Parameter | LY-ST70060PW | LY- ST70060NW | LY- ST70060WW |
Battery | 18650 lithium battery 12V 80 Ah | ||
Beam angle | 150x70° | ||
Pole diameter | 60MM | ||
Light output | 60W | ||
Luminous flux(lm) | 9600 | ||
LED Quantity(pcs) | 48 | ||
Color Temperature | Pure white:5000-6500K | Warm white:4000-4500K | Neutral white:2700-3200K |
Solar panel | 100W /18V monocrystalline silicon | ||
CRI | ＞70 | ||
Chip Brand | LUXEON 5050 | ||
Operating time | Full power >12 hours ,Intelligent mode 3-4 days | ||
Control Mode | Light Control +Time Control | ||
Material | Die Casting Aluminum | ||
Luminous efficiency(lm/w) | ＞160 | ||
Lifespan(h) | ＞50000 | ||
IP Rating | IP66 | ||
Installation height | 6~8M | ||
Product Details:
80W-180W for Optional, and the light fixture can be changed according to customer's demand.
1. Adopting LUMILEDS 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, high light transmittance up to 98%.
2. Very high quality 18650 Lithium battery, with 12v 50Ah capacity, 6000 times re-cycle. Lifespan 10 years
3. MPPT smart system motion sensor controller, programmable. Hybrid solution available if customized requests.
Connect to the pole when install the lamp
Lamp tail adopt 60mm diameter, fitness for all the market throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special length sure its available, just negotiate more.
Back hood hole could be drilled, for extend function eg: NEMA 7 pin socket, daylight sensor socket.

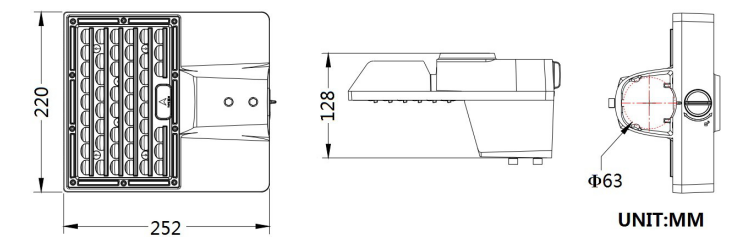

a. light source:

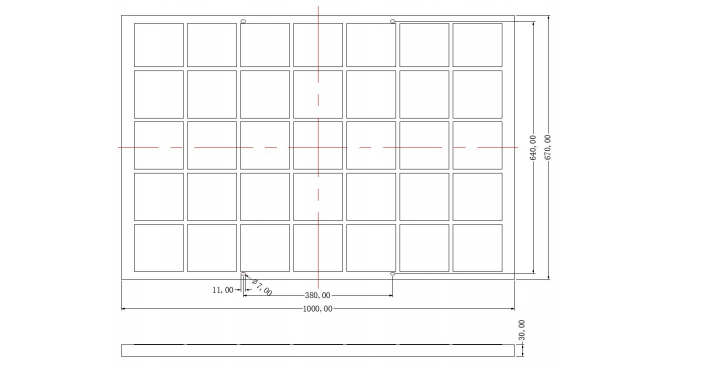

b. Solar panels:
c. Battery pack
a. light source
Par NO. | Size | Net weight | Gross weight | Quantity |
Inner box | L310*W270*H200mm L12.21*W10.63*H7.87Inch | 2.5kg | 3.0kg | 1PCS |
Outer box | L328*W285*H425mm L12.91*W11.22*H16.73Inch | 5.0kg | 6.4kg | 2PCS |
b. Solar + Battery
Par NO. | Size | Net weight | Gross weight | Quantity |
Inner box | L1055*W180*H725mm L41.54*W7.09*H28.54Inch | 16.78kg | 18.2kg | 1PCS |
Outer box | L1070*W375*H740mm L42.13*W14.76*H29.14Inch | 33.6kg | 37.5kg | 2PCS |
