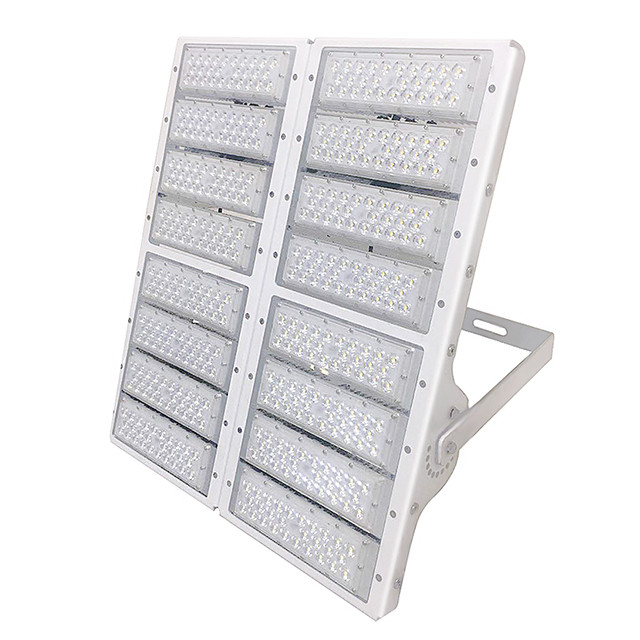

    1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light

    Ask Lasest Price
    Brand Name : Leyond
    Model Number : LY-ST231000XX
    Certification : CE,ROHS
    Price : contact me
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light

    1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light


    Modular led flood light 160LM/W

    Powers: 50W to 1000W

    Luxeon 5050 chip LED

    Meanwell driver

    5 Years Warranty

    IP66

    Product Specification:


    • Electrical Specifications

    Modelmodules numberPowerInput VoltageInput CurrentPower factorPower efficiency
    LY-ST231000PW161000W

    AC90~305V

    50/60Hz

    4.78A/220VAC

    >0.99/115VAC

    >0.98/230VAC

    >90%

    • Photometric Specifications
    Product ModelLuminous FluxCCTLight efficiencyPowerCRI

    Module

    Quantity

    Lens

    Degree

    LY-ST231000PW155000 LM5000-6500K155lm/W

    1000W


    >70



    16

    25°

    60°

    90°

    LY-ST231000NW152000 LM4000-4500K152lm/W
    LY-ST231000WW132000 LM2700-3200K132lm/W
    • Mechanical Specifications

    ModelCarton Sizegross weightNet WeightIP RatingMeterial
    LY-ST231000PW830×735×160mm24.5kg22.7kgIP66

    Aluminum +PC


    Product Features:


    Adoption LEYOND exclusive Lens with light transmittance up to 98%.

    Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

    There are 25°,60°, 90°, beam angle options for the Lens.

    Scientifically-designed heat dissipater with much better cooling effect.

    High luminous efficiency, Whole lamp output light effiency >160LM/W.

    High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

    For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

    Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

    The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

    Product details with pictures:


    1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light

    Our Services:


    1. Factory price, large monthly output

    2. 5years warranty, high quality guarantee

    3. professional Export service, easy to communicate and save your much time

    4. Timely delivery, let you win biggest markets advantage

    5. Satisfied After-sales service, to be your reliable supplier

    6. any question will be get answer within 12 hours

    7. R & D team, welcoem OEM and ODM order


    Applications:


    It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

    New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.


    FAQ:


    1. How to choose LED light source?

    A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.


    2. Why choose Leyond Lighting?

    A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.


    3. What can Leyond offer?

    A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light, LED module, LED Street Light, ect.


    4. How to place an order?

    A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.


    5. How long will be the lead time?

    A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.


    6. How long will the warranty period last?

    A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
