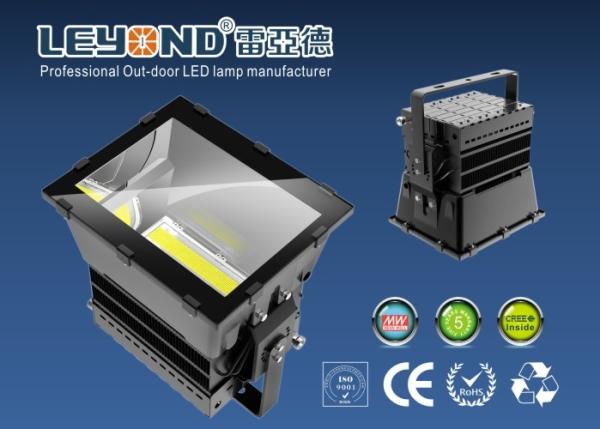

1000W super bright High Power LED Stadium Light outdoor stadium
lighting Aluminum housing
Illuminant parameters
1, Led Type: High Power Led
2, Beam angle:15°,Power factor (PF) :≥0.95
3, Color:White/Warm White(2800-7500K) ;
4, IP Degree:IP65,Frequency (Hz) :47 to 63Hz, Color index (CRI)
:≥80Ra
5, LED life span: 5,0000 hours,warranty:3 Years
6, Appearance parameters
7, House& lampshade:Aluminium alloy
8, Fixture Colour:Silver Grey/Black
Product Specification:
| Input voltage | AC100V～240V |
| Frequency range | 50HZ～60HZ |
| Total harmonic distortion | ≤9% |
| Power factor | ≥0.9 |
| Power efficiency | ＞85% |
| System consumption | 1000W |
| LED package | CREE XTE |
| LED consumption | 1000W |
| LED Working voltage | DC33～39V |
| LED quantity | 440PCS |
| LED luminous | ＞80100lm |
| LED luminous efficiency | 85～95lm / W |
| CRI | ＞70 |
| LED Junction temperature | ≤85℃ |
| Operational condition | Temperature -30℃～50℃ |
| Humidity 10%～90%RH |
| Storage temperature | -30℃～75℃ |
| Working life-span | ＞50,000H |
| Beam angle | 90°*50°,90°*10° |
| IP Grad | IP65 |
| Housing | Glass and AI alloy |
| Mounting Height | Suitable for 10～50m height
|
Product Features
Full waterproof design.
High transmittance empered glass,transimittan 93% .
The radiating area 1250cm² .
Multi-Chip on lead frame,single module LED package design.
System design integrating power supply,LED light engine ,and heat
sink.
Over Current,Over Voltage,Over Heat,Thunder Protection.
Choice of correlated color temperatures.
Long lifespan for LED 50,000 hrs.
Complying with CE,ROHS, No strobing during working, Fast response
(no delay) , No
mercury vapour ,No radiation,No UV,No damage with frequency
switching .
IP Rating: IP65 .
Power supply direct touch the radiator,in light weight.
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when choosing LED light source. The higher, the
better. Besides, brand of LED chip, LED base and other materials
will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyong always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood
light, LED high bay, LED downlight, LED ceilling light, LED spot
light, LED tube, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below
5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
6. Can you accept OEM or ODM design?
A: Yes,OEM or ODM design is available
