High Performance Led Modular Flood Light White Housing Multi Beam
Angle
1. Specifications:
| Part No. | LY-ST24150-XX |
| Power | 150w |
| Voltage | 100-240V AC 50/60HZ |
| Chips | Bridgelux 150pcs |
| Driver | Meanwell HLG-150 |
| Material | Alluminum+ PC |
| Color | White/Black |
| IP Rate | IP66 |
| CRI | 70 |
| PF | >0.97 |
| Beam Angle | 24/36/60/90 |
| CCT(K) | 2700-3300K(WW).4000-4500K(PW),6000-6500K(CW) |
| Certification | CE,EMC, LVD, RoHS |
| Lifespan | 50000hrs |
| Warranty | 5 Years |
| Working Temperature | -30-50 ℃ |
| Relative Humidity | 20-90% |
| Store Temperature | -30-80 ℃ |
| Blue | Neutral |
| Browm | Line |
| Yeallow-Green | Ground |
Application Area | 1. Warehouse lighting, Industrial lighting 2. Parking Lot Lighting, Garage Lighting 3. Airport, Train Station Lighting 4. Tunnel Lighting |
| Installation Height | Recommend 5-12M height
|

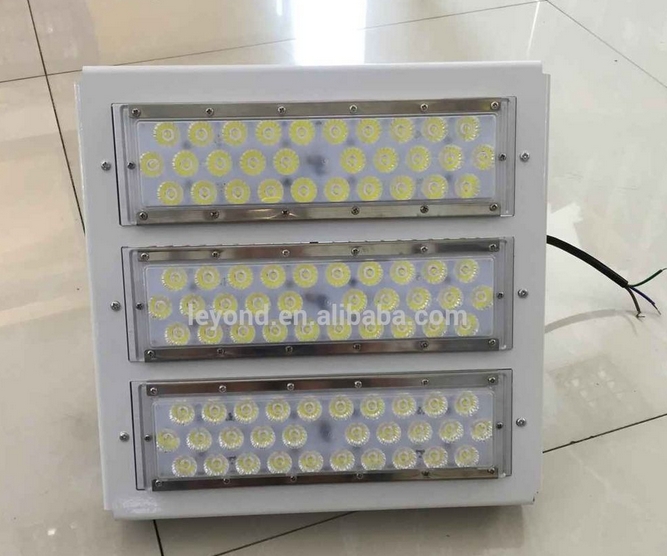

2. Pictures:
3. Features:
• Adoption LEYOND exclusive Lens with light transmittance up to
98%.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 24°, 36°,60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling
effect.
• High luminous efficiency, Whole lamp output light effiency
>130LM/W.
• High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
• For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
4. Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to
test its quality reliability
and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should
pass all these QC procedures
before shipping to customer.
5. Distribution Curve:
24 Deg 36 Deg
60 Deg 90 Deg
6. Application:
• It is applicable to playground lighting ,warehouse lighting, plaza
lighting, tunnel lighting and so on.
• New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
• Below is the feedback picture from our client.
