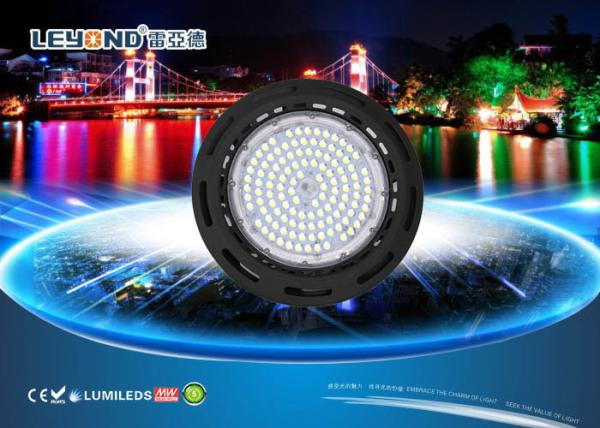

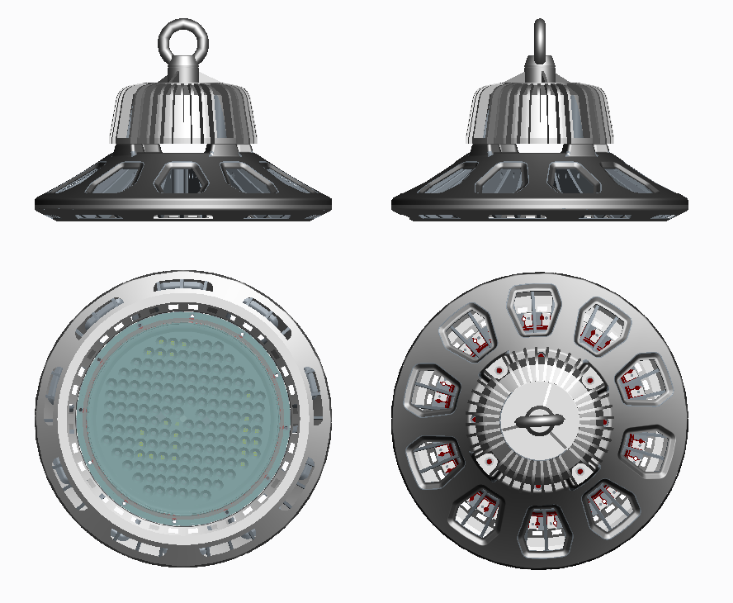

·Commercial 3030 100w Led Highbay Light 60 Degree 90 Degree
Up to 80% Energy-saving compared to metal halide lamp, mercury-free
and 100% recyclable, energy saving and environmental protection
·Isolated internal led driver, easy installation, safety guaranteed
·High PF value 0.9 above and THD less 15% for decrease of
electricity loss
·Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years
warranty, cost effective
·Power supply key components adopt world brand,No flicker, no delay,
Instant on/off
·Designed for hook type, can be directly replaced is used to quick
and easy
·installation to minimize retrofit and maintenance costs
·Small size, less weight and durable is the best choice for
warehouses, stadiums, exhibition spaces, high ceiling lights.
·Using imported chip, LED encapsulation structure optimization, to
achieve low light failure, high photosynthetic efficiency, energy
conservation and environmental protection advantages.
Package
Carton Size: 360mm×360mm×200mm
Net weight:2.6KG Gross weight:3.7KG
Assembly and Installation
Assembly Electricity
Ø Blue : Neutral
Ø Brown : Line
Ø Yellow-Green : Ground
Installtion
Step1. Ensure all power disconnected and turn off the power switch.
Step2. Knowing the inside diameter of the circular ring,then choose
suitable hook for the lamp.
Step3. Fix the hook before installation and enable it to support
over 3 times weight of the lamp. Connect the lamp with hook and
make it safe.
Step4. Connect the input cables of lamp to power supply mains and
wrap up the cables with insulated sleeve.
Step5. Switch on the power, the lamp will light on. Refer to the
left figure.
In case of any abnormal phenomenon or problem, please switch off
the power supply then contact with Genice customer service center.
Company Information:
Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation
founded in 2005, which is the wholy-owned subsidiary of LIYANG
Electronic (HK) limited. We concentrates and specializes in
developing and producing high power LED lighting. Our major
products include LED Floodlight, LED Streetlight,LED Hight Bay
light and LED Billboard Light etc. Meantime,We also can supply
professional lighting solution and OEM service based on customs’
requirement.
FAQ:
1. What is your price?
Based on your quantity and specification requirement, reasonable
and affordable price.
2. How many years warratny?
5 years warranty, 50000 hours lifespan.
3. What is the payment term?
For sample order, we can accept T/T, Paypal, West Union, 100% in
advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before
shipping.
4. What's your fast delivery time for sample 1-10pcs?
Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
Yes.
6. I don’t know how many Led High Bay Light should I use, can you
advise?
Yes, we can help you do the lighting design using software Dialux,
IES file is available if you have the design team.
