CE ROHS certified high power outdoor LED Modular Flood Light 100w
high brightness no glare

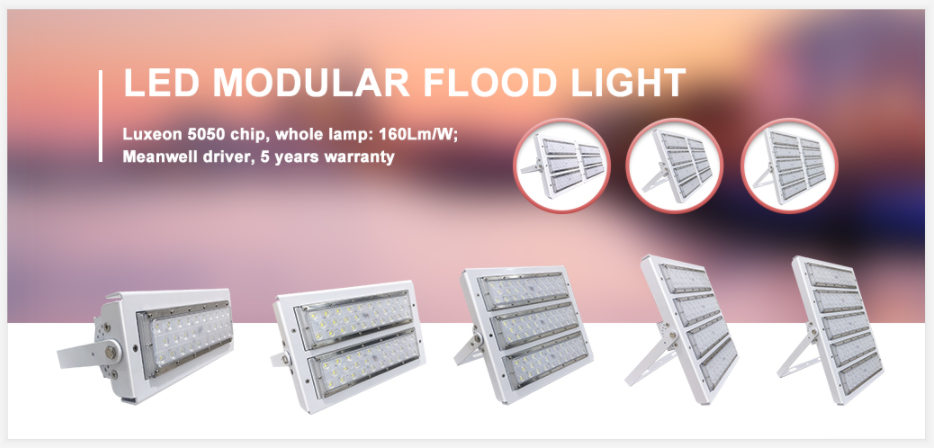

1. Outlook
2. Specifications
Par NO Parameter | LY-ST23100PW | LY-ST23100NW | LY-ST23100WW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16000 | 14800 | 13500 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90° | 25°,60°, 90° | 25°,60°, 90° |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL ELG-100 / HLG-75H |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 320*222*76 | 320*222*76 | 320*222*76 |
| Net Weigh(kg) | 3.5 | 3.5 | 3.5 |
| Package Size(mm) | 326*390*135 | 326*390*135 | 326*390*135 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 4.1 | 4.1 | 4.1 |
3. Features
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution: Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 25°,60°, 90°,beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling
effect.
• High luminous efficiency, whole lamp output light effiency
>160LM/W.
• High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98,
CE/ROHS/TUV compulsory certification.
• For the traditional light source such as the High Pressure Sodium,
if the voltage fluctuation ±7%, the brightness and lifetime will be
reduced very fast, but for LEYOND LED, even the voltage fluctuation
is ±20%, the brightness and lifetime will not be influenced at
all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
4. Pictures
5. Applications
- It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
- New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
6. Packing
Inner box Size: 326mm×390mm×135mm
Outer box Size: 340mm×405mm×305mm (2 PCS LED Flood Light)
7. Warning
- Please handle the product with care when open the package.
- Do Not Open the Light Engine
- Do Not Soak the Floodlight into Water
- Do Not Light up the System Without Grounding
- Do Not Use Dimmer
- If the new LED down light is found damaged, please keep the
original package and contact us.
- In order to ensure the product work properly, please use the power
supply within indicating voltage range.
- Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
- 1-10V dimming need to be customized.
