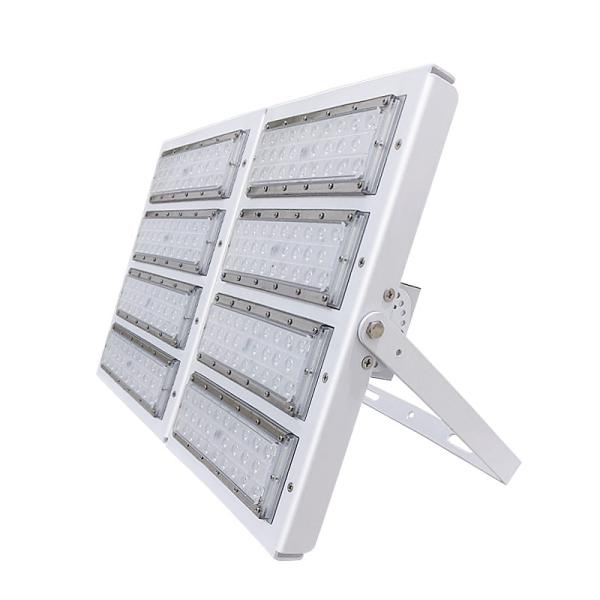

400W LED flood lights outdoor high power with 160Lm/w high
efficiency.
Outlook:
Applications:
1. It is applicable to playground lighting ,warehouse lighting,
plaza lighting, tunnel lighting and so on.
2. New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to
95%.
2. Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3. There are 25°,60°, 90° ,150*65 degree beam angle options for the
Lens.
4. Scientifically-designed heat dissipater with much better cooling
effect.
5. High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6. High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
7. For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
Specifications:
Par NO Parameter | LY-ST23400PW | LY-ST23400NW | LY-ST23400WW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 400 | 400 | 400 |
| Luminous flux(lm) | 64000 | 61500 | 58000 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90°,150*65° | 25°,60°, 90°,150*65° | 25°,60°, 90°,150*65° |
| CRI | ＞80 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL ELG-200 / XLG-200H 2pcs |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 640*410*322 | 640*410*322 | 640*410*322 |
| Net Weigh(kg) | 11.5 | 11.5 | 11.5 |
| Package Size(mm) | 720*535*120 | 720*535*120 | 720*535*120 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 12.3 | 12.3 | 12.3 |
About Us:
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a
leading provider of outdoor lighting fixtures with high technology
and quality. We are carry out enterprise culture of the “To
customer demand as the guide,keep the leading technology, to create
maximum value for customers”, and the spirit of “Humility
self-discipline, perseverance, go all out” is our permanent
pursuit. Leyond is striving to achieve the goal of “to be the best
LED lighting supplier” and to“ build Leyond brand”.
Leyond is the Top 3 LED street light exporter from China,Our major
products include Led Street Lights, Led Flood Light,LED Stadium
Light,Led Canopy lights,ect,All design and making by ourself.
According to customers’ requirement we can supply professional
lighting solution not only design but also in production. Leyond
operates strictly based on ISO 9001:2000, the quality management
system from purchasing to designing to manufacturing.
RFQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 10-15 days.
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
