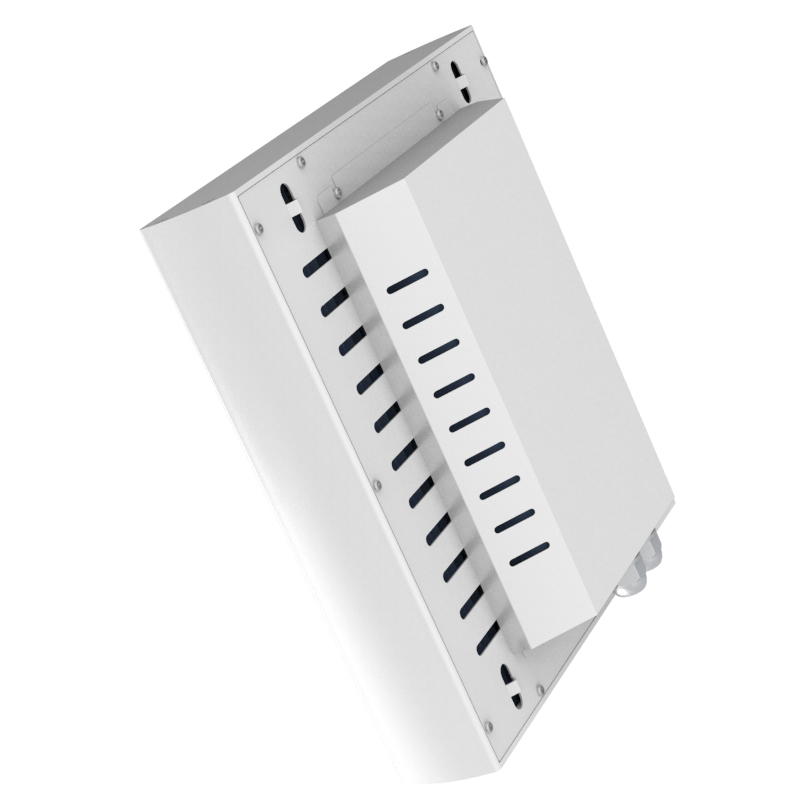

High Performance LED 240W Low Bay Light 3030 Chips Dimmable As
Standard IP50
Key Data
| Model | Power | Input Voltage | Luminous Flux | LED Type | LED QTY | System Efficiency |
| LY-HB55240XX | 240W | AC 100V~240V 50/60Hz | PW:26000lm WW:23500lm NW:24800lm | LUXEON 3030 | 280 PCS | >90% |
| Driver | Beam Angle | CRI | CCT | Meterial | Product Size | Net weight |
| Meanwell ELG150 | 120° | >80 | PW:5000~6500K WW:2700~3200K NW:4000~4500K | Aluminum+Acrylic | 362X471X130mm | 7.5kg |
Assembly and Installation
Assembly-Electricity
Blue : Neutral
Brown : Line
Yellow-Green : Ground
Package
Carton Size: 530mm×420mm×250mm
Net weight: 7.5KG
Gross weight: 8.4KG
Advantages:
1) Perfect mounted in high location on warehouse/parking
place/workshop,etc.
2) Lumileds chips plus Meanwell driver, UGR:18, 5 years warranty.
3) 1-10V Dimmable and microwave motion sensor both available.
4) Lock catch and chain as standard equipped for installation.
Installation:
Carefully read the installation instructions and ensure the mains
supply is isolated before installation. Please follow the safety
information overleaf before carrying out any installation. Please
retain this lealet for future reference.
Step 1:
Carefully remove the Low Bay and chain from the packaging. Install
the chain onto the eye bolts
on the back of the Low Bay light.
Step 2:
Mount the Low Bay light to the ceiling using a mounting hook and
suitable suspension kit.
Step 3:
Secure the supply cable using suitable clips. Ensure that the cable
is not touching the body of the Low Bay light .
Step 4:
Connect the cable to the mains as per the illustration below
Safety Information:
All electrical work must be undertaken by a qualiied contractor to
ensure compliance with latest edition BS 7671 and IEE/IET wiring
regulations.
Before installing an LED Low Bay or doing any maintenance, ensure
power supply is turned off at the circuit breaker or fuse box.
This product is designed for permanent connection to ixed wiring;
the circuit should be protected with the appropriate MCB or fuse.
Application
It is applicable to Indoor Stadium lighting, warehouse lighting,
Workshop lighting,
factory lighting,Supermarket lighting and so on.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Our Service
Payment: T /T in advance
Items: EXW Price
Delivery Time: 5-7 days for sample, 12-18 work days for bulk order.
Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.

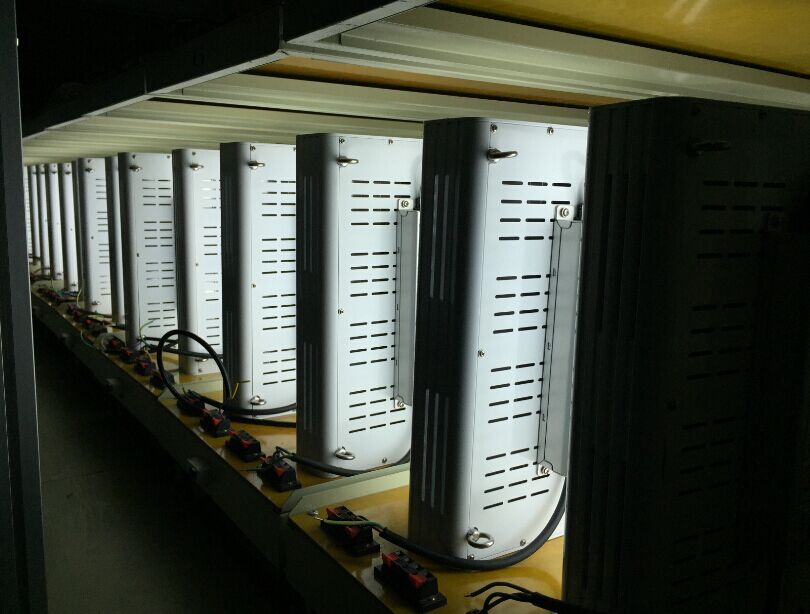

Quality Control
Quality guarantee is based on storing, installing, operating and
maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing
inappropriately, breaking the operating rules, and leading to the
products damaging.
Our company will maintain the right to either repair, parts
replacing, or products exchange during the quality warranty period.
