Aluminum Electric Led Garden Light CE ROHs Certificate 30w Top post
light
Technical parameter:
Par NO. Parameter | LY-GL20020 | LY-GL20030 | LY-GL20040 | LY-GL20050 | LY-GL20060 |
| Beam angle | 100°X100° |
| Pole diameter | 60/76/83mm |
| Light output | 20W | 30W | 40W | 50W | 60 |
| Luminous flux(lm) | 2960 | 4350 | 5680 | 6800 | 8100 |
| Color Temperature | Warm White: 2700-3200K Neutral White: 4000-4500K Pure White:
5000-6500K |
| LED Driver | MEAN WELL / INVENTRONICS/SOSEN |
| CRI | >70 |
| Chip Brand | PHILIPS LUXEON 3030 |
| LED Quantity(PCS) | 64 | 96 |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | 148 | 145 | 142 | 138 | 135 |
| Lifespan(h) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 3~6M |
| Size(mm) | L530xW530xH146mm L20.87*W20.87*H5.75inch |
| Net Weigh(kg) | 6.2 |
| Package Size(mm) | L665*W600*H130mm L26.18*W23.62*H5.12inch |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 7.2 |
Features
- Unique appearance and structure, large illuminated area, uniform
light emission and no dark areas;
- Using optical lens with a light transmittance of 92%, symmetrical
light emission;
- Good heat dissipation, at 50W, the heat dissipation area is as high
as 150 square centimeters per watt;
- The waterproof and dustproof grade reaches IP66;
FAQ:
1. Q: What's the led chip for the modular flood light?
A: Luminus Luxeon 3030 led chip
2. Q:what's the driver brand?
A: Meanwell or Sosen or Inventronics driver
3. Q:what's the delivery time?
A: for sample,3-5 working days after payment,for normal order,7-10
working days.
4. Q:what's the product warranty?
A :5 years warranty
5. Q:Can you provide OEM design?
A: Yes,OEM or ODM design is available

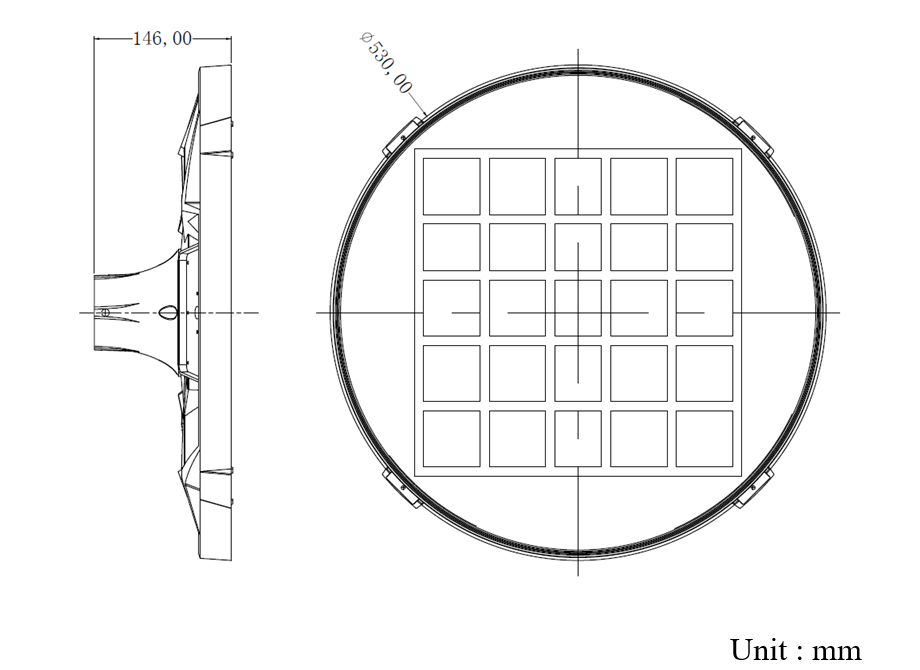

Led Garden Light Dimension:

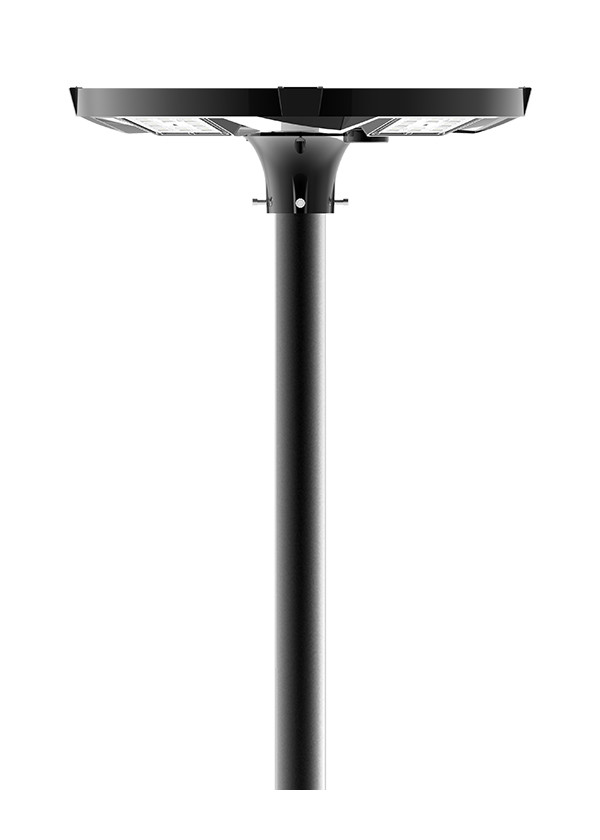

Product Picture:
