Explosion Proof IP66 IK10 Lumileds 5050 Gas Station Light 50w 100w
120w
Gas Station Light High Efficiency 50w 100w 120w 160lm/w Explosion
Proof IP66 IK10
Features:
• Using LUXEON 5050 led chip to ensure high lumen and long life.
Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to
98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast,
fire resistant.The unit construction of lamp adopt waterproof and
dustproof design, It can meet the indoor and outdoor needs.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 85°beam angle for your optional, optimized light
distribution design solution.
• High luminous efficiency, High quality power supply, input
voltage 100-240V. The power efficiency is more than 90%, power
factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without
fading and corrosion.
• Impact Resistance, Shock-proof, IK10. Without Ultraviolet (UV)
and Infrared (IR) Radiation: No filament and glass frames, avoid
break of the traditional lamp,without harm to the human body.
• The CCT of Warm white, Neutral white, Pure white to meet the
needs of different occasions, eliminated the low color temperature
of the sodium lamp which cause the depressed mood, observers will
feel more comfortable.
Specification:
Par NO Parameter | LY-YL20100PW | LY- YL20100WW | LY- YL20100NW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16500 | 16000 | 16300 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 |
| Beam Angle | 85 DEG |
| LED Driver | MEAN WELL ELG-100 |
Luminous efficiency(lm/w) |
＞165 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 383x383x61 | 383x383x61 | 383x383x61 |
| Net Weigh(kg) | 5.8 | 5.8 | 5.8 |
| Package Size(mm) | 428*428*125 | 428*428*125 | 428*428*125 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 6.6 | 6.6 | 6.6
|
Product descreption:
Dimension:
Installation method:
Application cases:
Installation instructions:
1. Switch off the power supply
2. Hole cutting of the ceiling board
3. Make the canopy light in the hole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional
electrician)
Distribution Curve:
Applications:
- Gas station
- Warehouse
- Cold storage
- Over pass
- Tunnel
- Natatorium
- Gymnasium

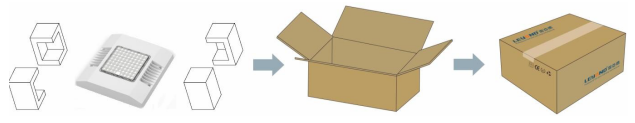

Package info:
Inner box Size: 428mm×428mm×125mm
Outer box Size: 450mm×450mm×290mm
Actual pictures:
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for
order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
