IP66 IK10 150W 160lm/W LED Street Lighting Commercial Outdoor Use
IP66 5 Years Warranty Outdoor Road Lamp IK10 150W Petrel Led Street
Light
Features
- The shell adopts die-casting integral molding, which has higher
safety and longer life.
- The product has a beautiful appearance and curved lines, which
effectively reduces wind resistance;
- The product has a smooth surface and self-cleaning function, which
effectively reduces dust accumulation;
- Using Philips 5050 lamp beads, the luminous efficiency is as high
as 160lm/w
- The optical lens adopts Japanese PC material, with a light
transmittance of over 93%, anti-ultraviolet rays, and good product
stability;
- The lamp is equipped with a level gauge for positioning, which is
more time-saving and beautiful in installation
- Waterproof and dustproof grade: IP66, protection grade IK10;
- The product is equipped with other more optional functions: light
controller, circuit breaker, single lamp controller, anti-falling
sling, etc.
Specification:
Par NO Parameter | LY-ST81120XX | LY-ST81150XX | LY-ST81180XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V |
| POWER(W) | 120W | 150W | 180W |
| Luminous flux(lm) | 19200 | 23250 | 27000 |
| Chip Brand | LUXEON 5050 |
| LED Quantity (pcs) | 54 |
| Beam Angle | TYPE III 150*80 |
| CRI | 70/80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure
white:5000-6500K |
| Luminous efficiency(lm/w) | ＞160 | >155 | >150 |
| LED Driver | MEAN WELL / INVENTRONICS |
| Lifespan(h) | ＞50000 |
| IP Rating / IK | IP66 / IK10 |
| Material | ADC 12 |
| Dimmable | 1-10V/DALI |
| Light body color | Black/Grey |
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% |
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% |
| Size(mm) | L806*W200*H109mm (L31.73*W7.88*H4.29Inch) |
| Net Weigh(kg) | 4.8 |
| Package Size(mm) | L847*W242*H154mm (L33.35*W9.53*H6.06inch) |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 5.6 |
| Installation height(m) | 8-12 |
Distribution Curve (180W)

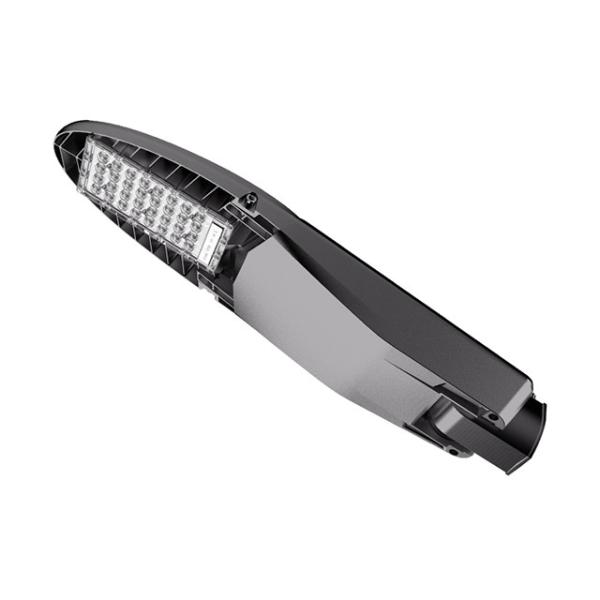

Outlook:
Package:
| Name | Size | Quantity | N.G | G.W |
| Inner box | L847*W242*H154mm (L33.35*W9.53*H6.06inch) | 1pcs | 4.8kg | 5.6kg |
| Outer box | L865*W254*H332mm L34.06*W10.0*H13.07inch | 2pcs | 9.6kg | 11.9kg |

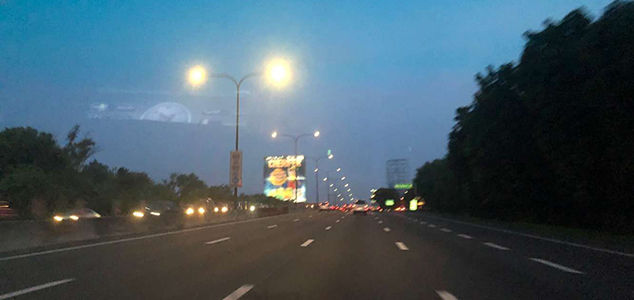

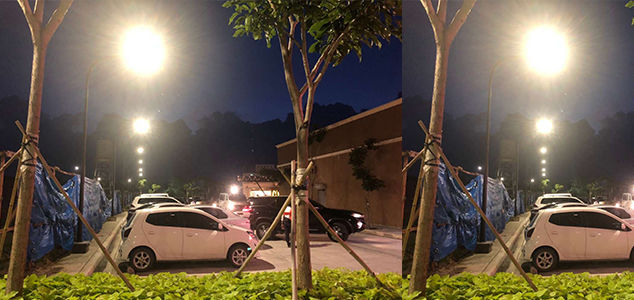

Application cases:
Installation instructions:
1. Switch off the power supply
2. Through the AC electrucal cable in the lamp pole
3. Clear the Brown / Blue / Green Yellow pole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional
electrician)
