Fast delivery Factory warehouse industrial pendant ceiling 200W UFO
led high bay light
Facture
Up to 80% Energy-saving compared to metal halide lamp ,
mercury-free and 100% recyclable,
energy saving and environmental protection
Isolated internal led driver , easy installation , safety
guaranteed
High PF value 0.9 above and THD less 15% for decrease of
electricity loss
Up to120LM/W high light efficacy , 50000h above lifespan, 5 Years
warranty, cost effective
Power supply key components adopt world brand , No flicker , no
delay, Instant on / off
Designed for hook type , can be directly replaced is used to quick
and easy
Installation to minimize retrofit and maintenance costs
Small size , less weight and durable is the best choice for
warehouses , stadiums , exhibition spaces , high ceiling lights.
Using imported chip, LED encapsulation structure optimization , to
achieve low light failure , high photosynthetic efficiency , energy
conservation and environmental protection advantages.
Warming:
- Please handle the product with care when open the package.
l Do Not Open the Light Engine
l Do Not Soak the High bay light into Water
l Do Not Light up the System Without Grounding
l Do Not Use Dimmer
- If the new LED down light is found damaged, please keep the
original package and contact us.
- In order to ensure the product work properly, please use the power
supply within indicating voltage range.
- Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
Application
There is widely used in Warehouse , Industrial workshops, Logistics
centers, Exhibition halls, Stadiums, Docks, Golf courses, Airport,
Highway toll stations, supermarkets Light engineering.
structure
Technical parameter
| Par NO Parameter | LY-HB39200WW | LY-HB39200NW | LY-HB39200PW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | ≤102 | ≤102 | ≤102 |
| Light Fixture Luminance(lm) | 24000 | 25200 | 26000 |
| LED type | SMD3030 | SMD3030 | SMD3030 |
| LED QTY | 120 | 120 | 120 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | MEAN WELL |
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 2700-3200k | 4000-4500k | 5000-6500k |
| Meterial | Magnesium Aluminum + PC cover |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Product Size(mm) | Φ400X204 | Φ400*204 | Φ400*204 |
| NET Weight(KG) | 4.95 | 4.95 | 4.95
|
package
Carton Size: 360mm×360mm×200mm
Net weight:2.6KG Gross weight:3.7KG
production
Assembly and Installation

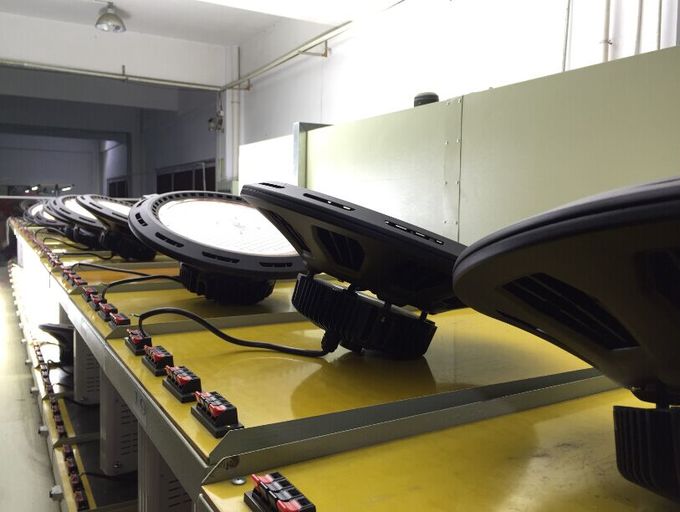

Aging Test:
100% of all lamps will be tested by auto testing line which
including different voltage, and keep lighting for 24 hours to test
its quality reliability and we will also test its temperature after
24 hours’ lighting. Each lamp should pass all these QC procedures
before shipping to customer.
Instatllation Guide:
Application:
The lamp can be widely used in Warehouse,Industrial
workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf
courses,Airport,Highway toll stations,supermarkets Light
engineering.
