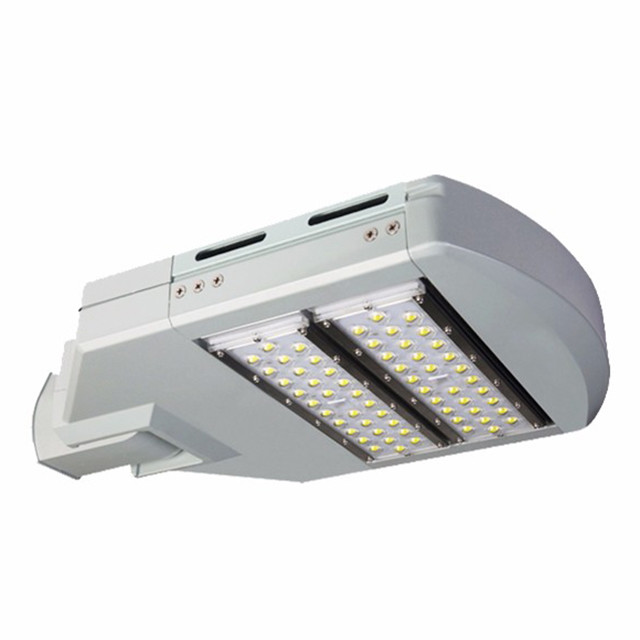

100w Ip66 Waterproof High Efficiency Classic Led Street Light
Product Specification:
Part NO. Parameter | LY-ST21060XX | LY-ST21090XX | LY-ST21100XX | LY-ST22120XX |
| Power | 60W | 90W | 100W | 120W |
| Luminous flux(lm) | 9600 | 14400 | 16000 | 19200 |
| Input Voltage | AC100~240V 50/60HZ |
| Beam angle | 150*65° |
| Pole Diameter | 60mm |
| Chip Brand | Luxeon 5050 |
| Driver | Meanwell/Inventronics |
| CRI | >75 |
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White:
5000K-6500K |
| Lifespan(hrs) | >50000 |
| Luminous efficiency(lm/w) | >160 |
| Material | Die Cast Aluminum |
| IP Rating | IP66 |
Operation and Storage Condition:
Operation Ambient Temperature -20 to +50°C, Relative Humidity
20~90%
Input Voltage 85~265V AC, 50/60Hz
Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
Mounting Height : Suitable for 5~10m height
Product Features
• High quality power supply,input voltage 100-240V.The power
efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8%
light efficiency higher than the same type lights in the market, with higher light
transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation, lower luminous decay, and also extend life span of the
leds.
• Adopting the popular CHEM modular design, effectively reduce the
following maintenancecose.
• Low energy consumption, matching high efficiency constant-current
driver, 60% energy saving; with good resistance to over-current,over-voltage,
lightning,
high temperature, which fully ensure long life span and high
stability of the products.
• Durable lights with long life spn up to 50000hours; No need
replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of
working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability
and also reduce the death rate of the leds.
Distribution Curve:(60w)
Dimension:
Applications:
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums, sidewalks,
residential areas, industrial areas, squares, parks, schools,
villas, gardens and other places.
Certification:
Product Details
Assembly –Electricity:
Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized
Leyond company
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the
wholly-owned subsidiary of LiYang Electronic (Hongkong)Limited. We
are High-Tech enterprise who concentrate and specialize in
developing and producing Eco-friendly high power LEDLightings.
Leyond company is located in Shenzhen, owns a 6000m2 factory with
high qualified clear workshops and 300 employees. Together with
outstanding optical & technical personnels and quality engineers;
equipped with advance automaticity Die Bonding & chip bonding
equipments and molding machines; perfect quality-testing and
safeguard measures; all of these promote Leyond to be the leader in
the industry.
