Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Ask Lasest Price
Brand Name :	Leyond
Model Number :	LY-ST81080XX
Certification :	CE,ROHS,ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	5000pcs/mon
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Features

The shell adopts die-casting integral molding, which has higher safety and longer life.
The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;

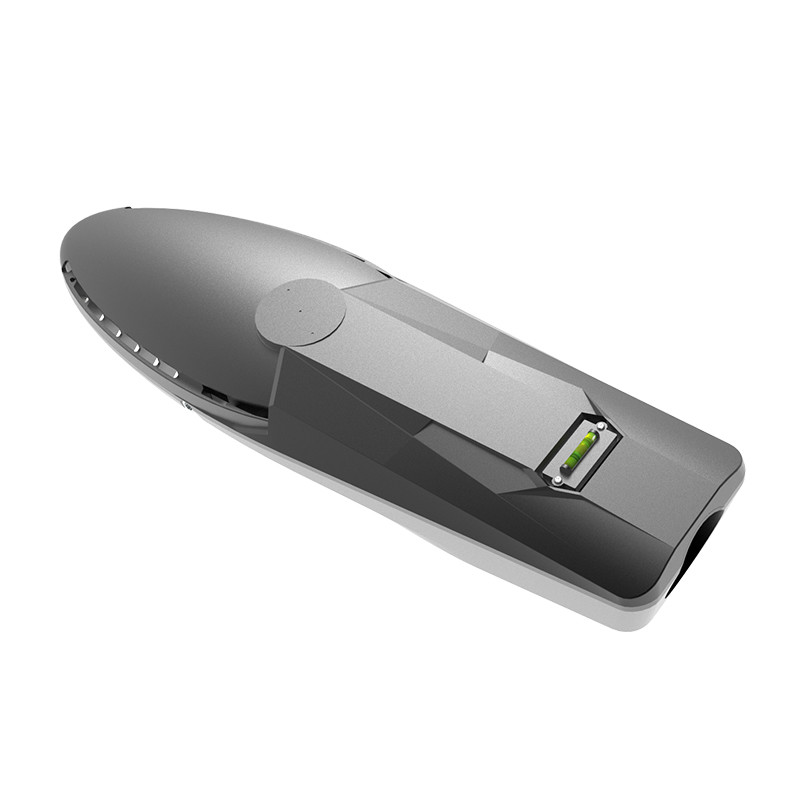

The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
Waterproof and dustproof grade: IP66, protection grade IK10;
The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Specification:

Par NO Parameter	LY-ST81020XX	LY-ST81030XX	LY-ST81040XX	LY-ST81050XX	LY-ST81060XX
Input voltage	AC100V～277V 50/60HZ / DC12-24V
POWER(W)	20W	30W	40W	50W	60W
Luminous flux(lm)	3200	4740	6200	7650	9000
Chip Brand	LUXEON5050
LED Quantity (pcs)	18
Beam Angle	TYPE III 150*80
CRI	70/80
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w)	＞160	＞158	＞155	＞153	＞150
LED Driver	MEAN WELL / INVENTRONICS
Lifespan(h)	＞50000
IP Rating / IK	IP66 / IK10
Material	ADC 12
Dimmable	1-10V/DALI
Light body color	Black/Grey
working environment	Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment	Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm)	L580W180H106mm (L22.83W7.09H4.17Inch)
Net Weigh(kg)	2.5kg
Package Size(mm)	L614W222H162mm (L24.17W8.74H6.38inch)
Package Quantity(Pcs)	1
Gross Weigh(kg)	3.3
Installation height(m)	4-8

Distribution Curve (20W)

Outlook:

Package:

Name

Size

Quantity

N.G

G.W

Inner box

L614.0*W222.0*H162.0mm

L24.17*W8.74*H6.38inch

1pcs

2.5kg

3.3kg

Outer box

L632.0*W456.0*H348.0mm

L24.88*W17.95*H13.70inch

4pcs

10.0kg

14.2kg

Products:

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Certification:

Energy Efficient Street lighting Advantages as below:

1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead.
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation.
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs.
8. High brightness, low consumption, green for environment.
9. Save 80% more energy compared with traditional lighting fixtures.

Outdoor Led Street Lights Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Quality Control:

Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.

Operating Guide:

1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height
