80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

LED Outdoor Stadium lighting 80W with 160Lm/W high efficiency for sports lighting fixture.

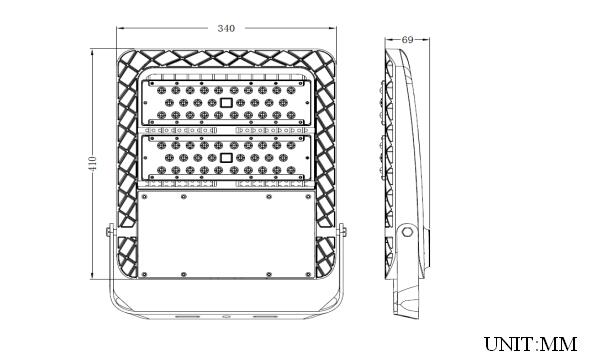

01. Apperance:

02. Features:

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• There are 25°, 60°, 90° beam angle options for the Lens.
• High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• High luminous efficiency, Whole lamp output light efficiency >160LM/W.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.

03. Specification:

04. Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting ,court lighting and so on.

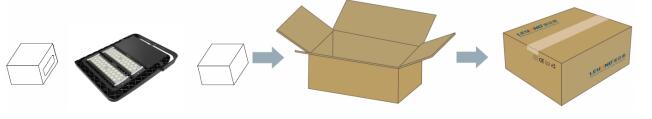

05. Package:

Inner box Size: 500mm×370mm×100mm

Outer box Size: 520mm×385mm×240mm (2 PCS LED Stadium Light)

06. Optional Function:

Daylight automatically controlling ON / OFF

• Turn-On Light Level: 10 Lux or at customer’s request
• Turn-Off Light Level: 50 Lux or at customer’s request
• Turn-On Time Delay: 10-15s
• Turn-Off Time Delay: 10-15s

07. Production:

08. Testing:

09. Exhibition:

WHO WE ARE

Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.

WHAT WE DO

Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

OUR SERVICE

◆ Short Delivery Time ◆ More than 10 years experience in outdoor lighting fixtures production

THE ADVANTAGES OF LEYOND

◆More than 10 years experience in outdoor lighting fixtures production

◆Outstanding quality

◆Professional techniques and service
