All In One 80W 100W IP66 LED Street Light For Roadway Lighting
Fixture
1. Outlook
02. Features:
1. The lamp adopts integrated structure design, with better heat
dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to
160lm/W;
3. The solar panel is made of Monocrystalline silicon, with a
higher conversion efficiency, up to 18%, and a service life of up
to 25 years;
4. Using the most advanced MPPT tracking control technology to
improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming,
intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity
is high;
8. 365 days uninterrupted power.
9. Three control model:
Time control + light sensor control + motion sensor control;
Time control: It can be divided into 5 time periods, which is more humane and
energy-saving;
Light sensor control: When the evening comes, when the solar panel battery voltage is
lower than 3V,the lamp will automatically turn on;

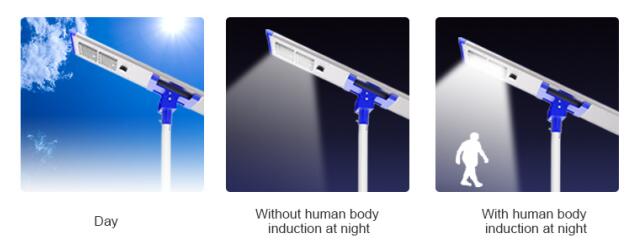

Motion sensor control: A motion-sensing energy-saving mode. When a moving object is
sensed, the lamp will have 100% brightness; when no moving object
is sensed, the lamp will be in a low-power and energy-saving state,
with a brightness of 10%-100% (can be set)
03. specification
Par NO Parameter | LY-ST31080PW | LY-ST31080WW | LY-ST31080NW |
| Battery | 18650 lithium battery 12V 70 Ah |
| Beam angle | 150x70° | 150x60° | 150x70° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 80W | 80W | 80W |
| Luminous flux(lm) | 12800 | 12500 | 12000 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| Solar panel | 80W /18V mono-crystalline silicon |
| CRI | ＞70 |
| Chip Brand | LUXEON 5050 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control + Sensor |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 6~8M |
04. Package
Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)
L54.92*W8.26*H16.93 Inch
05. Distribution Curve
06. Operation and Storage Condition
l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%
l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%
l Mounting Height: Suitable for 6~8m height
07. Lamp internal wiring diagram
08. Warning
1. Do not install in high temperature, closed and non-ventilated
areas;
2. The installation location should not be installed under the tree
or the place where there are obstructions. The solar panel must be
exposed to sunlight in all directions;
3. When the product is stored in the warehouse, it needs to be
charged and discharged every 3 months;
4. When the product is faulty, you need to find a professional to
deal with it;
5. Eliminate scrapped products, must be handed over to the relevant
departments for Centralized processing.
