100W Petrel IP66 LED Street Lighting Luxeon 3030 Chips PC Lens
Newest design 160LM/W Petrel LED Street Lights 100W Luxeon 3030
chips PC lens
1. Outlook

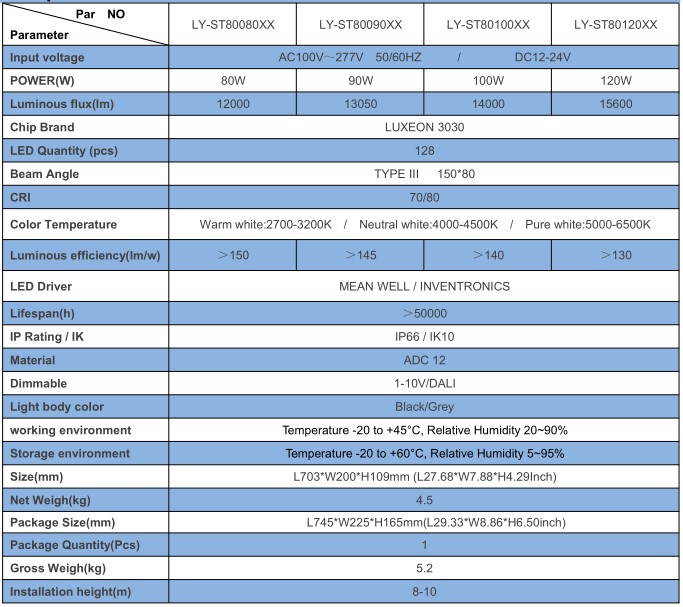

2. Specification
3. Picture
4. Application
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums,sidewalk,
residential areas, industrial areas, squares, parks, schools,
villas, gardens and other places.
5. Features
1. The shell adopts die-casting integral molding, which has higher
safety and longer life.
2. The product has a beautiful appearance and curved lines, which
effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function,
which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as
high as 160lm/w
5. The optical lens adopts Japanese PC material, with a light
transmittance of over 93%, anti-ultraviolet rays, and good product
stability;
6. The lamp is equipped with a level gauge for positioning, which
is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
8. The product is equipped with other more optional functions:
light controller, circuit breaker,single lamp controller,
anti-falling sling, etc.

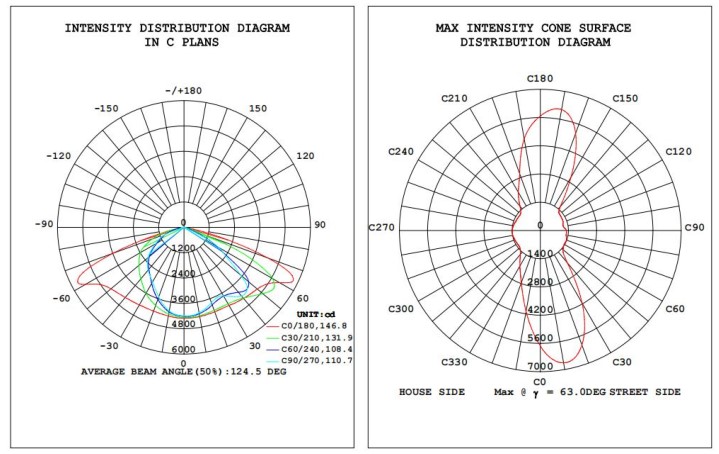

6. Distribution Curve
7. Package
Inner box L745.0*W225.0*H165.0mm 1pcs 4.5kg 5.2kg
Outer box L765.0*W240.0*H355.0mm 2pcs 9.0kg 11.0kg
8. Notes
This product provides a 5-year warranty period from the date of
purchase.
During the warranty period, if the product fails under normal use,
the company will
provide free maintenance services. During the warranty period,
please strictly abide
by the product usage specifications:
1. Before use, please read the installation manual in detail for
correct installation;
2. Please check carefully before use. If any abnormal phenomenon is
found
during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will
be deemed to
automatically give up warranty.
