IP Rating IP66 LUMILEDS 5050 LED Module Halogen Street Light LED
50w
50W LED Street Light Retrofit IP66 Replace Halogen Street Light
Features:
- Adoption LEYOND exclusive Lens with light transmittance up to
98%.
- Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90°,150x65° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling
effect.
- High luminous efficiency, Whole lamp output light efficiency
>165LM/W.
- High quality power supply, input voltage 100-240V. The power
efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for LEYOND LED Chip, even the
voltage fluctuation is ±20%, the brightness and lifetime will not
be influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp.without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
Product Description:
Dimension:
Application Cases:

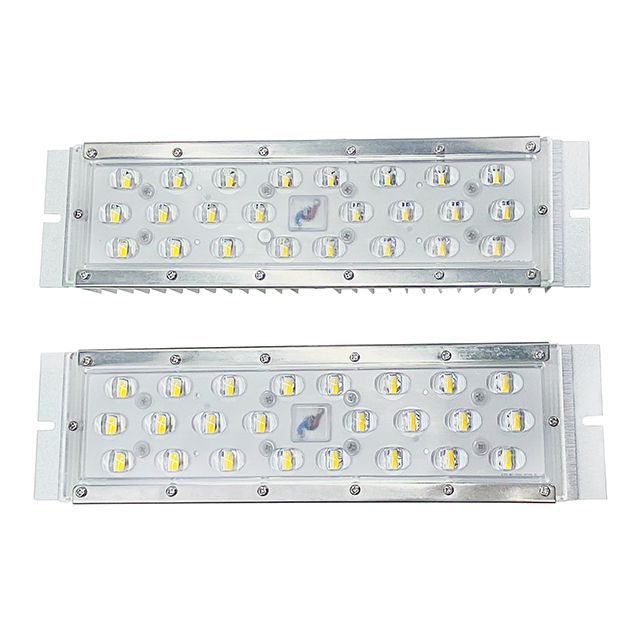

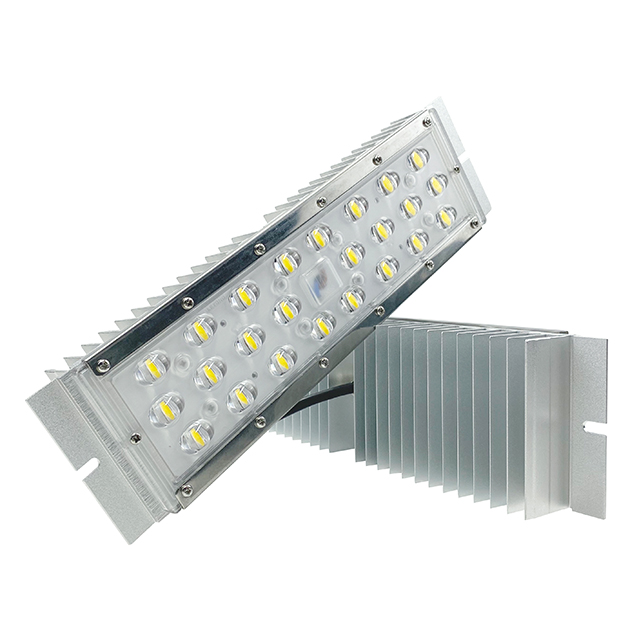

Actual product Pictures:
Installation instructions:
1. Switch off the power supply
2. Make the stadium light on the Bracket
3. Electrical wiring connection
4. Tight the screws
5. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional
electrician)
Specification:
CCT(K) | Wattage(W) | CRI(Ra) | Voltage DC (V) | Current DC (mA) | LuminousEfficiency (Lm/W) | Luminousflux (lm) |
2700-3200 (WW) | 30 | ≥70 | 44-52 | 670 | 160 | 4800 |
40 | ≥70 | 44-52 | 900 | 155 | 6200 |
45 | ≥70 | 44-52 | 1000 | 151 | 6800 |
4000-4500 (NW) | 30 | ≥70 | 44-52 | 670 | 167 | 5000 |
40 | ≥70 | 44-52 | 900 | 163 | 6500 |
45 | ≥70 | 44-52 | 1000 | 160 | 7200 |
5000-6000 (PW) | 30 | ≥70 | 44-52 | 670 | 170 | 5100 |
40 | ≥70 | 44-52 | 900 | 166 | 6650 |
45 | ≥70 | 44-52 | 1000 | 163 | 7350 |
IP Rating | IP66 |
Product Dimension | 300*78*32MM |
Net weight | 0.63KG |
Light Body& Lampshade | Aluminum Alloy and PC |
Working Life | 50000H |
Working Temperature | -30℃ ~ +50℃ |
Storage Temperature | -20℃ ~ +75℃ |
Working Humidity | 10%~90% |
Beam Angle | 150*65° |
Package info:
Inner box Size: 648mm×325mm×270mm 25pcs 20KG
Related hot selling products:
1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w
Mr. Pure Zhao (Sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web: www.leyond.com.cn
Email: sales15@leyond.com.cn
Mobile/whatsapp: 0086 18675501972
Wechat: 0086 18675501972
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for
order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
