IP66 Outdoor Lighting Solar LED Garden Light 10W 20W 30W Landscape
Lighting
2. Specifications
Par NO. Parameter | LY-GL10030WW | LY-GL10030NW | LY-GL10030PW |
| Battery | 18650 lithium battery 12V 30 Ah |
| Beam angle | 100° X 100° |
| Pole diameter | 60/76/83mm |
| Light output | 30W |
| Luminous flux(lm) | 2050 | 4500 | 4000 |
| Color Temperature | Warm white:2700-3200K | Neutral white:4000-4500K | Pure white:5000-6500K |
| Solar panel | 30W /18V monocrystalline silicon |
| CRI | 70/80/90 |
| Chip Brand | LUXEON 3030 |
| LED Quantity(PCS) | 96 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control + Motion Sensor |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | 135 | 150 | 150 |
| Lifespan(h) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 3~5M |
| Size(mm) | L530xW530xH146mm L20.87*W20.87*H5.75inch |
| Net Weigh(kg) | 8 |
| Package Size(mm) | L652*W602*H130mm L26.18*W23.62*H5.12inch |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 9.2 |
3. Applications
Suitable for the Sidewalk lighting,Square lighting,Lighting in public areas such as parks, communities, industrial
parks, etc.
4. Features
1>The intergration of design ,no cable,the installation is very
convenient.
2>The Mono-crystalline solar panel,LED lights,lithium
battery,intelligent controller integrated Aluminum Alloy shell.
3>It used of lithium iron phosphate battery,fight the high
temperature,keep long life.
4>When the products with optically controlled microwave
induction infrared sensor, automatic adjustment of intelligent
power on rainy days, extend rainy days.
5>It used of alloy material as the main structure,with good rust
prevention,corrosion protection.
6>The wireless remote control setting device,adjustable lighting
time ,lighting power ,automatic detection of battery voltage,read
light power parameters,a human body induction function,as long as
people go through when full power lighting,no automatic power down
alf, restore energy saving mode.
7>time control + light sensor control+ motion sensor control
8>Motion and light sensor built in: solar street light goes on at
dusk at 20% brightness (Brightness adjustable). Can go from 20%
power to full brightness when motion is detected. Three Intelligent
Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for
security light and to save battery; 2,DIM: 20% lighting for saving power when no motion(Brightness
adjustable); 3,Off/Recharge: automatically turns off in daylight and goes into
recharge mode. (working mode can be adjusted according to client's
demands).
Outlook
5. Pictures
6. Smart Mold

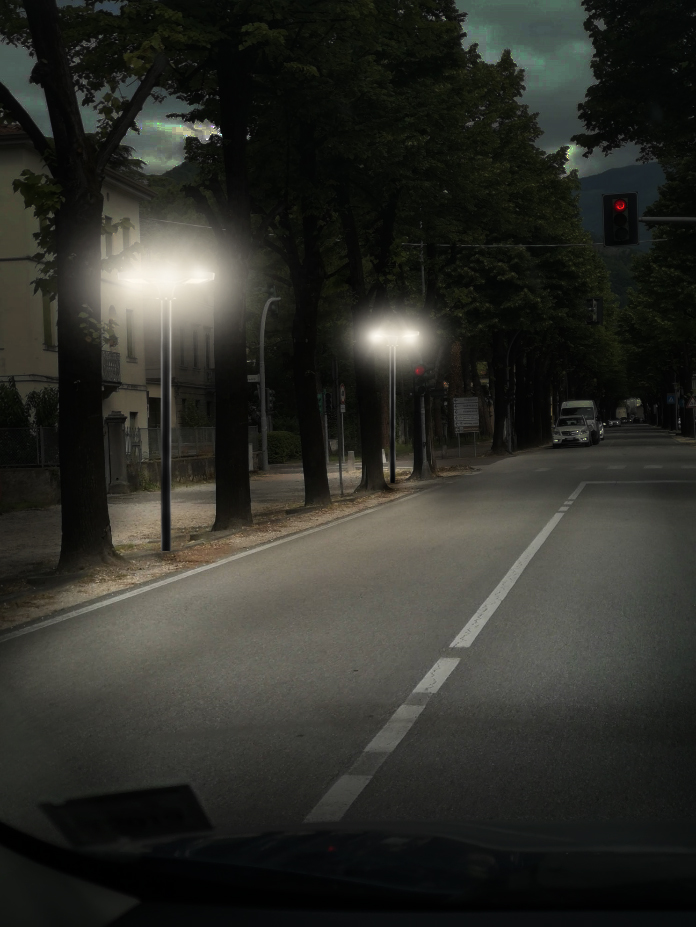

7. Project pictures
7. Operation and Storage Condition
- Operation Ambient Temperature -15 to +45°C, Relative Humidity
20~90%
- Storage Ambient Temperature -5 to +35°C, Relative Humidity 5~95%
- The battery is charged every 3 months during the storage process.
The storage period is 12 months. Products that exceed the storage
period must be re-inspected.
- Mounting Height: Suitable for 3~5m height
8. Package
Inner Carton Size: L665*W600*H130mm
L26.18*W23.62*H5.12inch (1PCS/Carton)
Out Carton Size: L680*W615*H285mm
L26.77*W24.21*H11.22Inch (2PCS/Carton)
