High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens
40W Tool-Less Driver Street Light High Temper Glass 130lm/W PC Lens
• Absolutely unique mold,make your lighting special and fantastic.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual
discomfort.
• high quality power supply, input voltage 85-305V. The power
efficiency is more than 90%, power factor greater than 0.98.
•Adopting LUXEON 5050 led light sources and LEYOND lens technology,
8% light efficiency higher than the same type lights in the market,
higher light transmittance up to 96%.
• Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds. Adopting the popular CHEM modular design,
effectively reduce the following maintenance cost.
• Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving; with good resistance to over-current,
over-voltage, lightning, high temperature, which fully ensure long
life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class
IP66.
• Work without strobe, fast transient response；A wide range of
working voltage.
| Par NO | LY-ST50040XX | LY-ST50040XX | LY-ST50040XX |
| Input voltage | AC90V～305V 50/60HZ |
| System consumption(W) | 40 | 40 | 40 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Driver Brand | MEAN WELL HLG-60H / ELG-75 |
| Lifespan(hrs) | ＞50000 | |
| Beam Angle | 160*85 DEG | 160*85 DEG | 160*85 DEG |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| Material | Die-casting Aluminum+PC Lens+ High Temper Glass |
| Size(mm) | 619x240x139 | 619x240x139 | 619x240x139 |
| Net Weigh(kg) | 4.9 | 4.9 | 4.9 |
| Sample Time | Immediately |

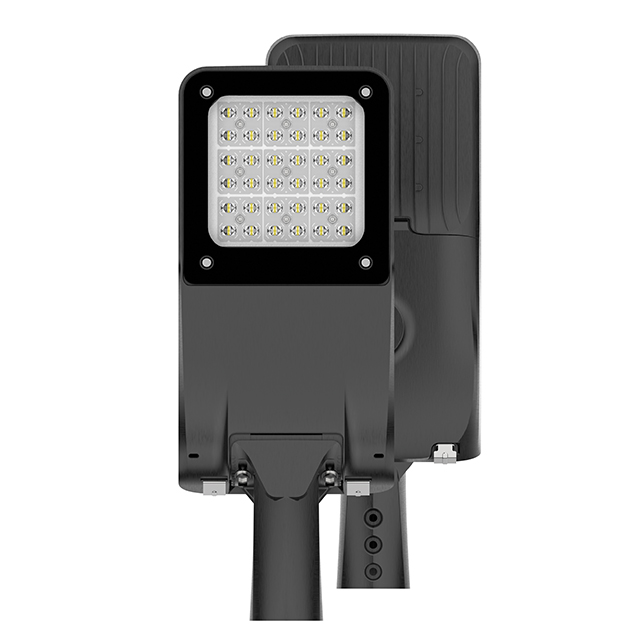

Product Images
Project Cast Images
Packing Details
Inner box Size: 660mm×280mm×190mm
Outer box Size: 680mm×295mm×420mm (2 PCS LED Street Light)
FAQ
Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.
Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW
terms.
Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and
guarantee the production quality of all products, either sample
order or formal order, with LEYOND's quality control process, we
achieved less than 0.2% general failure rate, this was based on our
sales records in the past 10 years.
Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label
design on the product and carton box. Or customized carton box, and
laser print logo on the lamp fixture.
Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the
certificates, test reports, photometric reports and IES files of
each of our luminaire.
Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional. Q8.What is the lead time of your product? Our standard lead time for sample is 3-5 days, and normal order
lead time is 7-10 days. For the large order lead time, please also
check with our sales team.
