80w Luxeon 5050 LED Street Lighting IP66 Outdoor Led Parking Lot
Light
Enec Toolless Led Street Light Luxeon 5050 Street Led Lamp 80w IP66
Outdoor Led Parking Lot Light
1. Specification of Leyond Galaxy LED Street light 80W
Par NO Parameter | LY-ST60080PW | LY- ST60080WW | LY- ST60080NW |
| Inptut voltage | AC100V～305V 50/60HZ |
| Sysem consumption(W) | 80 | 80 | 80 |
| Luminous flux(lm) | 13400 | 12000 | 12850 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 |
| Beam Angle | 150*60 DEG |
| LED Driver | INVENTRONICS EUM-075 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 252x220x128 | 252x220x128 | 252x220x128 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 290*250*180 | 290*250*180 |
290*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.7 | 3.7. | 3.7 |
2. Features of Leyond Galaxy LED Street light 80W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology,
higher light transmittance up to 93%.
• The power supply is designed to be portable and easy to construct
and maintain.Easy to disassemble and assemble: You can easily open
and cover up the housing with your hands, don't need any additional
tools.
3. Application of Leyond Galaxy LED Street light 80W
Suitable for the highways,urban roads and secondary
roads,stadiums,sidewalks,residential areas,industrial
areas,squares,parks,schools,villas,gardens and other places.
4. Outlook of Leyond Galaxy LED Street light 80W

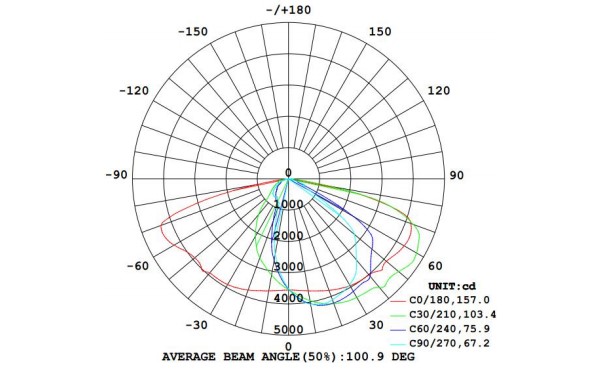

5. Distribution Curve
6. Operation and Storage Condition
Operation Ambient Temperature -20 to +50°C, Relative Humidity
20~90%
Input Voltage 100~305V AC, 50/60Hz
Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
Mounting Height : Suitable for 6~10m height
7. Optional function
1) Daylight automatically controlling ON / OFF
Turn-On Light Level: 10 Lux or at customer’s request
Turn-Off Light Level: 50 Lux or at customer’s request
Turn-On Time Delay: 10-15s
Turn-Off Time Delay: 10-15s
8. Package
Inner box Size: 290mm×250mm×180mm
Outer box Size: 310mm×265mm×400mm (2 PCS LED Street Light)
9. Warning
Do Not Use Other Devices for LED Street Light ,Installation Such
as
Stabilizer, Regulator …etc
Do Not Open the Light Engine
Do Not Soak the LED Street Light into Water
Do Not Light up the System Without Grounding
1-10V dimming need to be customized
